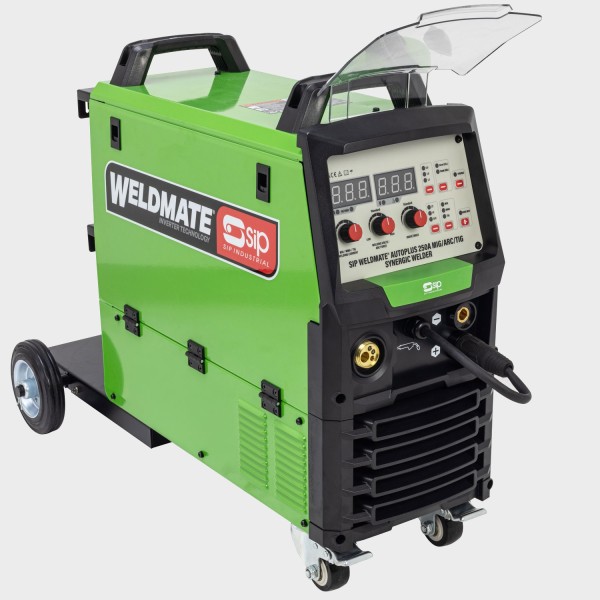

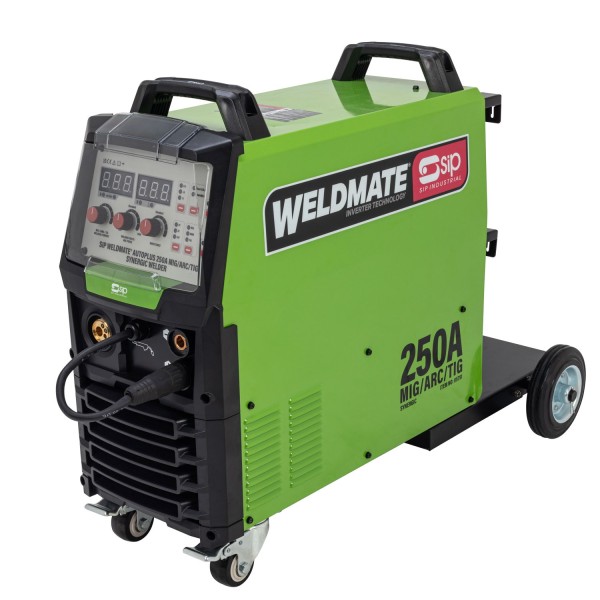

SIP Industrial WELDMATE® AUTOPLUS 250A MIG/ARC/TIG Welder (05751)

The SIP WELDMATE® AUTOPLUS 250A MIG/ARC/TIG Synergic Welder is a multi-process inverter welder specifically designed for use in automotive and garage environments.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operational costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

Applications & uses: Ideal for automotive and garage environments. Suitable for MIG/ARC/TIG welding and performs gasless MIG welding. Perect for sheet metal applications. Ideal for mild steel.

SIP 2-Year Standard Silver Warranty*

MULTI-PROCESS MIG/ARC/TIG WELDER FOR GREATER FLEXIBILITY AT HIGH DUTY CYCLES

• Duty cycle @ 20°C: 250A @ 80% (MIG/ARC/TIG).

PURE SYNERGIC CONTROL ALLOWS USERS TO ADJUST THE WELDING VOLTAGE & WIRE SPEED AUTONOMOUSLY

• This easy-to-set function simplifies the welding process at all skill levels, helping to achieve more consistent and higher quality welds.

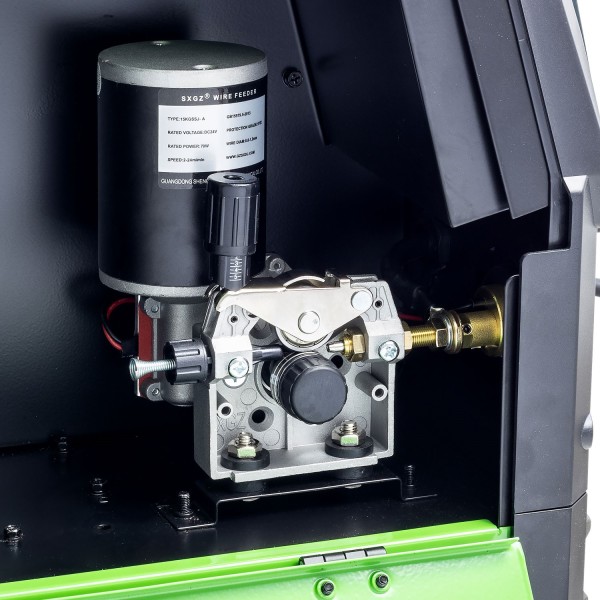

HEAVY-DUTY CAST ALUMINIUM 2-ROLL WIRE FEEDER ENSURES SMOOTH & CONSISTENT FLOW OF WIRE TO MIG TORCH

• This easy-to-use device includes tension adjustment to maintain optimal performance.
• Supplied with interchangeable feed rollers for solid and flux-cored wires.
• Compatible with welding wire spools of 5kg and 15kg.
• Fitted with a welding torch Euro connector and supplied with a 3mtr Euro MIG torch.

INTUITIVE CONTROL PANEL TO SELECT BETWEEN WELDING PROCESSES & SETTINGS

• This also includes MIG torch settings, gas type and wire size selector, 'Synergic' control function, 'Inductance' to control and reduce weld spatter, 'Wire Inch' to feed torch wire without using gas, and 'ARC Force' for fine arc adjustment.
• Infinitely variable dials offer a smoothless stepless output adjustment for higher quality and easy to control welding.
• Twin LEDs display welding outputs and synergic control metrics.

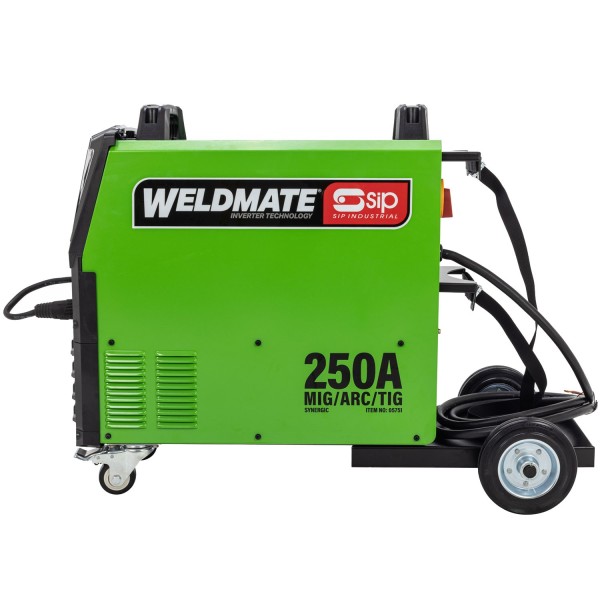

WHEEL-MOUNTED DESIGN FOR MOBILITY AROUND THE WORK AREA & SUITABLE FOR GAS CYLINDER UP TO 99KG

• Fitted with lockable front castors and large rear wheels for easy movement around the work area.
• Includes retaining straps for securing gas cylinder to the rear of the welder.
• Fitted with rotary power switch.
• High-quality finish is resistant to work area damage. Control panel cover for added protection.

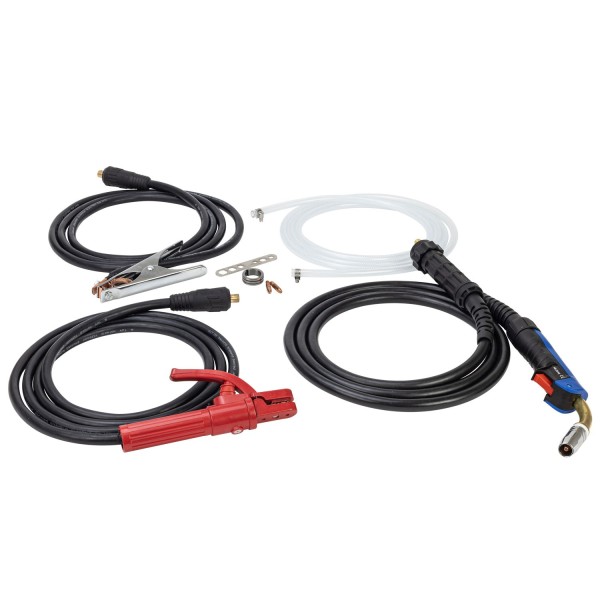

ACCESSORIES INCLUDED

• Supplied with a 3mtr Euro MIG torch, electrode lead, earth lead, gas hose with clamps, contact tips and wire feed rollers.

Technical

• ITEM NO. 05751
• Input Supply: 230v (32A)
• Welding Process: MIG ARC TIG
• Output Voltage: 15.5v - 26.5v 21.2v - 30v 10.4v - 20v
• Output Current: 30A - 250A 30A - 250A 10A - 250A
• Duty Cycle @ 20°C: 250A @ 80% 250A @ 80% 250A @ 80%
• Wire Diameter: ⌀ 0.8mm - 1.2mm
• Wire Spool Size: 5kg, 15kg
• Welding Material Thickness: 0.8mm - 6.4mm (mild steel)
• Protection / Insulation 21S / H
• Net Weight: 40kg
• Gross Weight: 43kg
• Product Dimensions: 650(H) x 450(W) x 880mm(D)
• Packaged Dimensions: 620(H) x 400(W) x 670mm(D)
