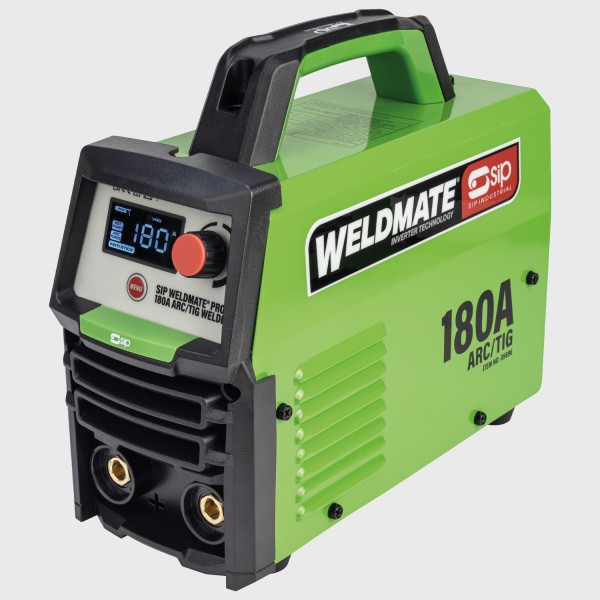

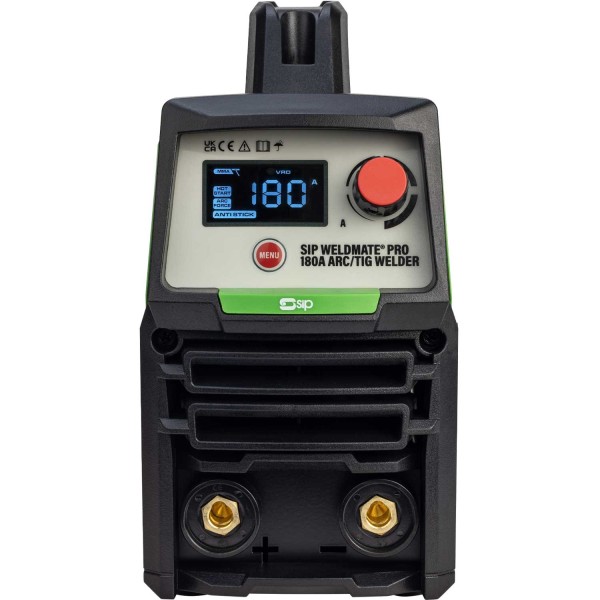

SIP Industrial WELDMATE® PRO 180A ARC/TIG Inverter Welder

The SIP WELDMATE® PRO 180A ARC/TIG Inverter Welder is a dual process inverter welder specifically designed for use in professional fabrication workshops.

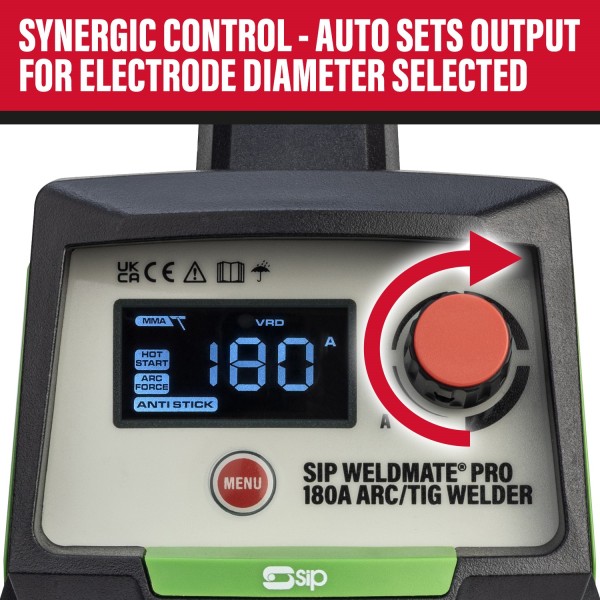

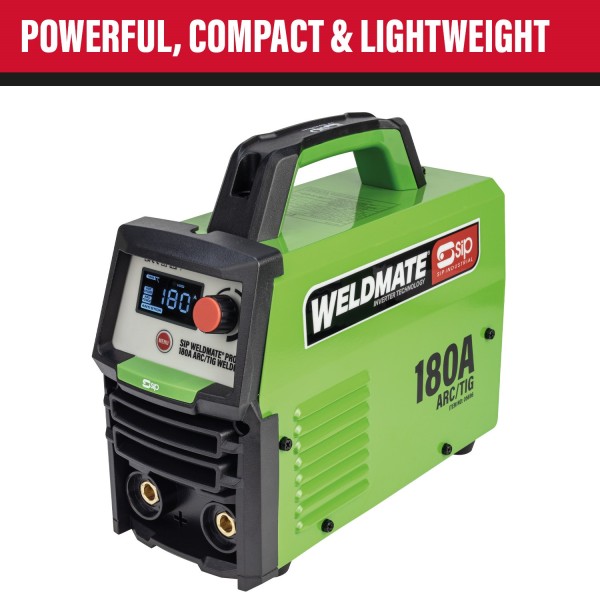

Powerful, compact and lightweight, this welder also features Synergic Control which adjusts the welding current output according to the electrode diameter selected for optimal penetration and bead formation.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

KEY FEATURES

• Dual process ARC/TIG welder for greater flexibility at high duty cycles
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Synergic control auto sets welding current output for electrode diameter selected
• Infinitely variable dial offers a smoother stepless output adjustment
• Intuitive LCD screen for setting output and selecting welding functions
• Compact and lightweight design for easy work area movement

Applications & uses: Ideal for use in professional fabrication workshops. Suitable for ARC/TIG welding. Ideal for mild steel, stainless steels and dissimilar steels.

What's in the box?: 1x SIP WELDMATE® PRO 180A ARC/TIG Inverter Welder (230v/16A), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush. TIG torch sold separately (Item 08206A recommended).

Technical

• Input Supply: 230v (16A)
• Welding Process: ARC TIG

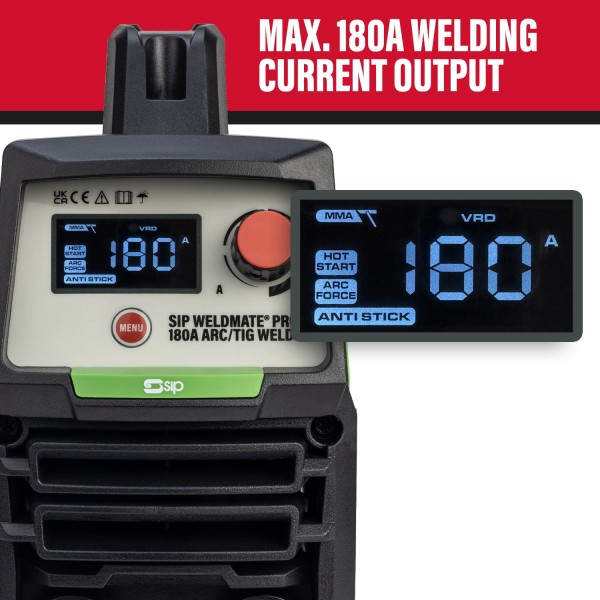

• Output Current: 10A - 180A 10A - 180A
• Output Voltage: 20.4v - 27.2v 10.4v - 17.2v
• Duty Cycle @ 20°C: 180A @ 30% 180A @ 30%
• Welding Material Thickness: 1.6mm - 8mm (mild steel)
• Protection / Insulation F
• Net Weight: 4.8kg
• Gross Weight: 5.75kg
• Product Dimensions: 240(H) x 256(W) x 280mm(D)
• Packaged Dimensions: 280(H) x 270(W) x 360mm(D)
