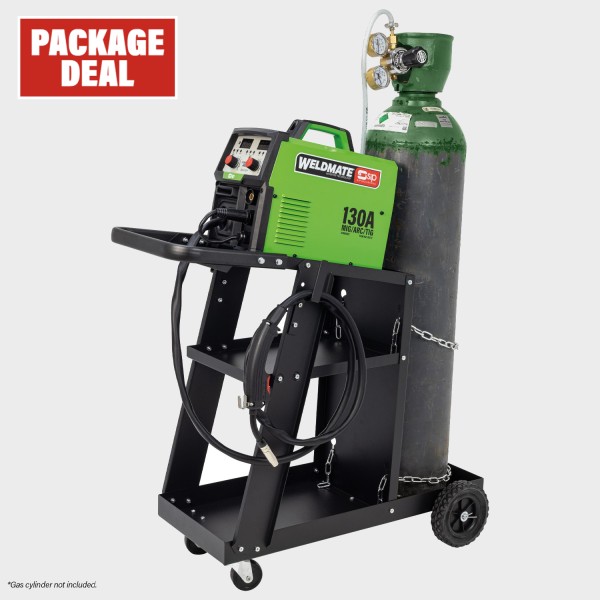

The SIP WELDMATE® AUTOPLUS 130A MIG/ARC/TIG Synergic Welder with Cart is a multi-process inverter welder specifically designed for use in automotive and garage environments, and is powered from a 13A supply.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.
Applications & uses: Ideal for use in automotive and garage environments. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding, and performs gasless MIG welding. Ideal for mild steels and welds *stainless steel.
*Using stainless steel welding wire.
- Multi-process MIG/ARC/TIG welder for greater flexibility at high duty cycles - Duty cycle @ 40°C: 130A @ 15% (MIG/ARC/TIG).
- Pure Synergic Control allows users to adjust welding voltage and wire speed autonomously - This easy-to-set function simplifies the welding process at all skill levels, helping to achieve more consistent and higher quality welds.
- Durable wire feeder ensures smooth and consistent flow of wire to MIG torch - This easy-to-use device includes tension adjustment to maintain optimal performance. Supplied with interchangeable feed rollers for solid and flux-cored wires. Compatible with 0.7kg welding wire spools.
- Intuitive control panel to select between welding process, gas type and wire size - Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding. Twin LEDs display welding output and synergic control metrics.
- Metal casing with heavy-duty carry handle for long life use - High-quality finish is resistant to work area damage and aids mobility.
- Compact and portable design for mobility around the work area - The compact unit is easy to move between locations using the fitted carry handle.
- Accessories included - Supplied with integrated 2mtr MIG torch, electrode lead, earth lead, gas hose with clamps, contact tips, feed rollers and chipping hammer/brush.
- Complete with 05714 SIP 3-Tier Welding Cart - Accompanied by compatible 05714 Cart suitable for holding gas cylinders up to 50kg.
Specifications
- Input Supply: 230v (13A)
- Welding Process: MIG ARC TIG
- Output Voltage: 16.5v - 20v 20.8v - 25.2v 10.8v - 15.2v
- Output Current: 50A - 130A 20A - 130A 20A - 130A
- Duty Cycle @ 40°C: 130A @ 15% 130A @ 15% 130A @ 15%
- Wire Diameter: ⌀ 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg
- Welding Material Thickness: 0.8mm - 6.4mm (mild steel)
- Protection / Insulation 21S / H
- Net Weight: 8.00kg
- Gross Weight: 9.50kg
- Product Dimensions: 310(H) x 170(W) x 330mm(D)
- Packaged Dimensions: 405(H) x 330(W) x 365mm(D)
