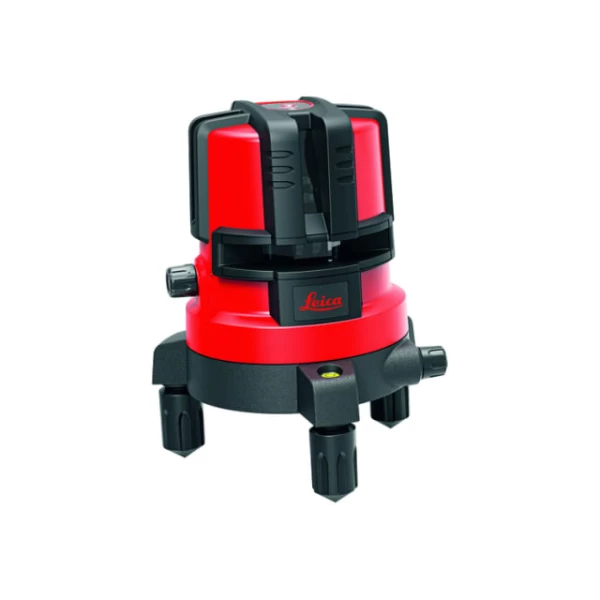

Leica Geosystems Lino L4P1 Multi-Line Layout Laser

The Leica LINO L4P1 is an all-in-one 180° laser layout tool designed to handle jobs that have traditionally required both a line and a point laser. The base of this laser level is designed for fast setups. Just grab and spin the unit on its base to get close, then use the fine-tune knob to adjust the line or cross point for perfect placement.

Combined with an overhead plumb laser point, the intersections of the three 180° vertical laser lines with the horizontal laser line create a total of five layout points for easy alignment and quick height transfers from wall-to-wall or floor-to-ceiling.

The self-levelling pendulum ensures a level line. You know your line is out of level when it blinks. If the points are out of levelling range, they shut off. Once level, the line goes solid or the dot appears. Lock the pendulum to set out angled lines or to protect the mechanism when you aren't using it.

The L4P1 runs on both rechargeable Li-Ion batteries, good for up to 24 hours on a single charge, as well as standard alkaline batteries. As with all our laser levels, the L4P1 is IP54 rated dust-proof and splash protected. The L4P1 is also compatible with our RVL80 laser receiver, which extends the working range of the line lasers up to 50m.

Supplied with: 1 x Target Plate, 1 x Li-Ion Battery, 1 x Charger & Plugs, 1 x Alkaline Battery Tray and 1 x Carry Case.

Specification

Level Accuracy:± 2mm @ 10m.Self-levelling Range:± 3°.Working Range: 15m (50m with receiver).Power: 1 x Rechargeable Li-Ion Battery (Supplied) OR 4 x AA Batteries.Dimensions (HxDxW): 125 x 125 x 162mm.Tripod Thread: 1/4in or 5/8in.Protection Class: IP54 rated, against splash & dust damage.
