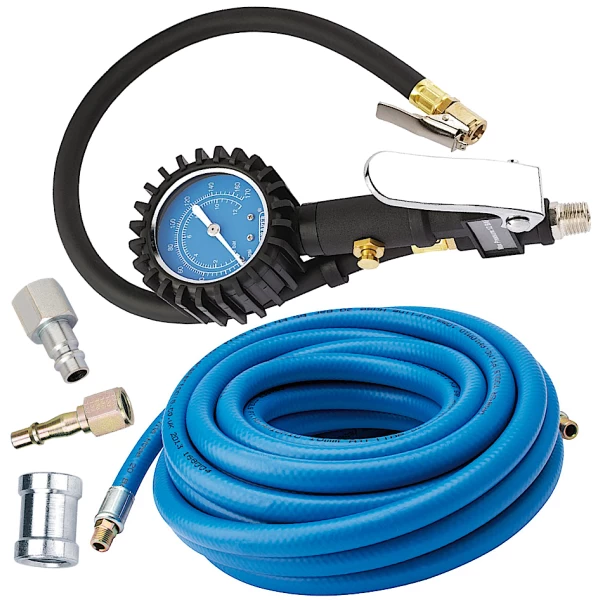

Draper Tyre Inflator + 10m Hose Bundle with Air Fittings and Adaptors

Pump it up with the Draper Tyre Inflator Bundle from Everyday Welding Supplies. Featuring an easy to read gauge and a hard-wearing 10m hose, this tyre inflator set is a must have for your garage or workshop.

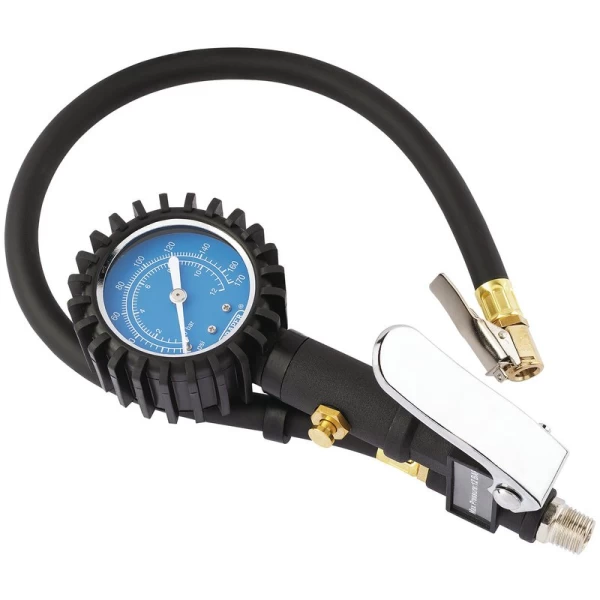

1 x Draper In-line Tyre Inflator (91320)

In-line tyre inflator fitted with a clip-on connector compatible for most vehicles including; cars, commercial vehicles, motorbikes and trailers and the easy to read 55mm gauge is attached with a heavy-duty rubber cover for increased protection. Maximum inflation pressure 12 BAR (170psi). Supplied with a 1/4" BSP male adaptor.

Specification

• Pressure range 0-12bar/0-170psi
• Min air supply
• Max air supply
• Supply inlet 1/4" BSP taper (F)
• Hose length 0.45M

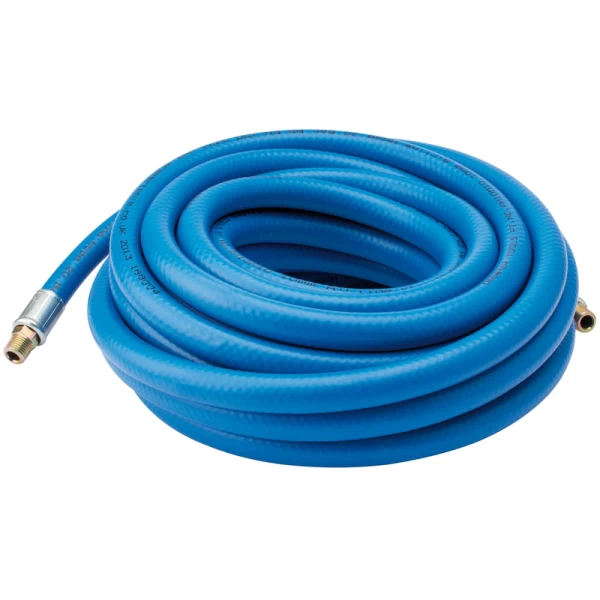

1 x 10m 1/4" Bsp 10mm Bore Air Line Hose (38336)

PVC air line hoses for the workshop and industrial user, Supplied with zinc plated fittings.

• Weight 2.295kgs
• Connection 1/4" BSP Male
• Internal x External Dia. 10 x 18mm
• Length 10M
• Size 10mm

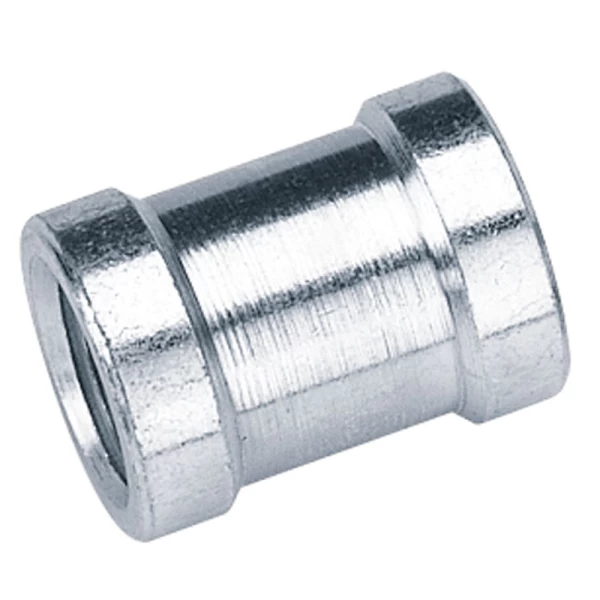

1 x 1/4" Bsp Pcl Parallel Union Nut / Socket (25823)

• 1/4" BSP. Sold loose.

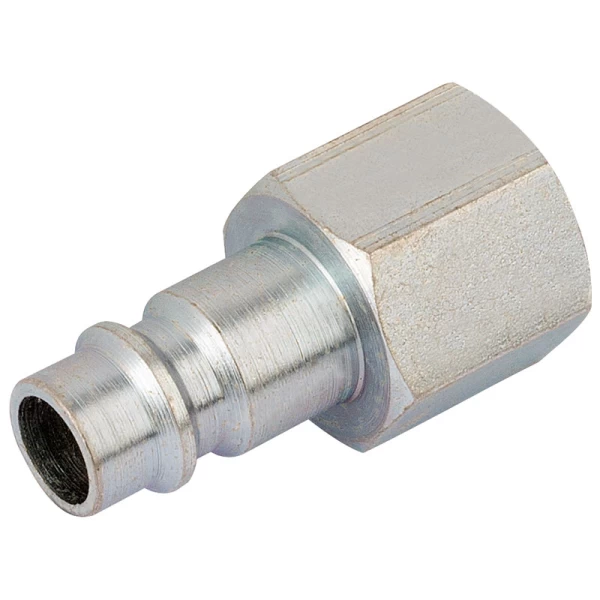

1 x 1/4" Bsp Female Nut Pcl Euro Coupling Adaptor (54419)

• For heavy duty high flow applications
• Tested to over 1 million cycles
• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)
• Zinc passivated to significantly improve corrosion resistance
• Hard wearing steel construction

Specification

• 0.5bar pressure drop 78cfm (2200L/min)
• Max. working pressure 500psi (35bar)
• Test pressure 725psi (50bar)
• Max. burst pressure 2030psi (140bar)
• Temp. range -40 to 100°C
• Nominal flow diameter 7.4mm

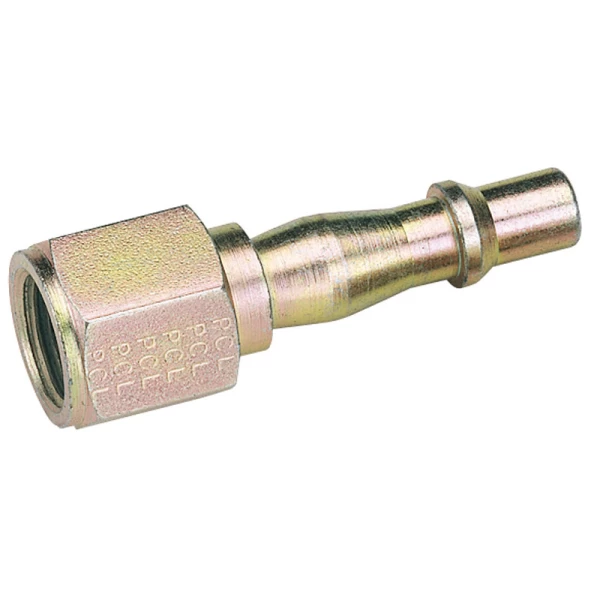

1 x 1/4" Female Thread Pcl Coupling Screw Adaptor (55061)

• Screw adaptor, female thread 1/4" parallel. Sold loose.
