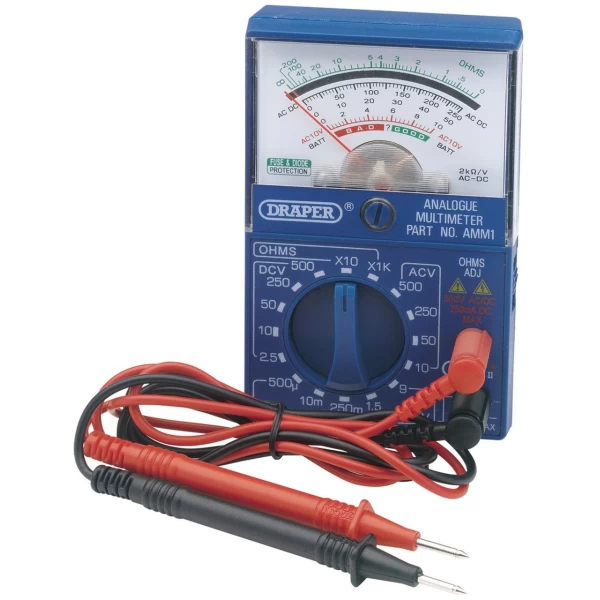

Draper Pocket Analogue Multimeter

Handy pocket analogue multimeter for use in electrical and automotive applications. Supplied with test probes, a crocodile clip probe set is available separately. Measures AC and DC Voltage, Measures DC current, Measures resistance, 16 position

• Measures AC/DC voltage, DC current and resistance
• 16 position rotary function and range selector
• Supplied with test probes
• Recessed input terminals
• Battery check facility
• IEC61010 Specifications

Specifications

• AC Current N/A
• AC Voltage 10V/50V/250V/500V
• Automatic Power Off N/A
• Battery 1 x AA
• Capacitance N/A
• DC Current 550uA/10mA/250mA/10A
• DC Voltage 2.5V/10V/50V/250V/500V
• Diode on/off Test N/A
• Dimensions 64mm x 35mm x 102mm
• Duty Ratio N/A
• Dwell N/A
• Frequency N/A
• Resistance (Ohms) 10Ω/1kΩ
• Size 64 x 100 x 35mm
• Symbol Unit Data Hold N/A
• TACH N/A
• Temperature Range N/A
• Weight 100g (approx.)

Contents

• 1 x Pocket Analogue Multimeter
• 2 x Test probes & leads
