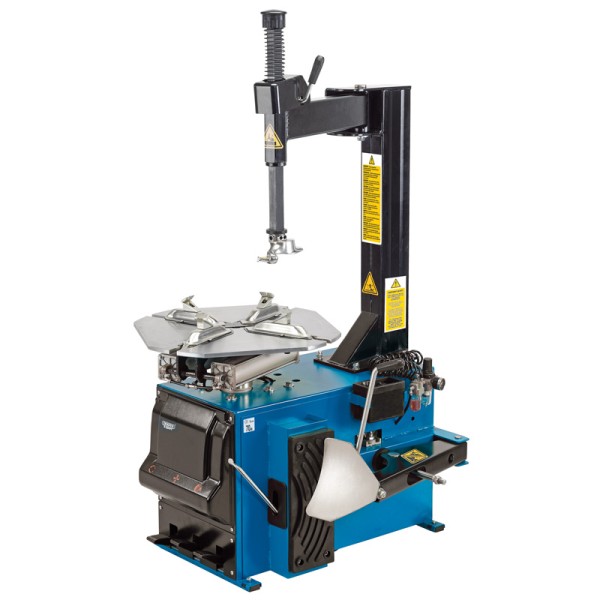

Draper EXPERT Semi Automatic Tyre Changer

FEATURES:

Expert Quality, semi automatic tyre changer, capable of removing and replacing tyres on wheels up to 23”. The fully motorised turntable, pneumatically operated clamping jaws and powerful pneumatic bead breaker enables the changing of conventional tyres quickly and easily. The self centring four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated by a standard 13amp 3 pin plug enabling self installation and the mounting arm swings to the side allowing the machine to be installed directly near a wall, perfect for those with limited working space. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

View more products in this category

SPECIFICATION:

Motor   ...   0.75KW
Power supply   ...   230V
Bead breaker force   ...   2100kg
Pneumatic supply   ...   90-115psi (6-8BAR)
Suitable for use on wheel width   ...   3" to 14"
For rim dia. (internal locking)   ...   13" to 23"
For rim dia. (external locking)   ...   11" to 21"
Max tyre outside diameter   ...   40" (1000mm)
Dimensions   ...   1740mm x 950mm x 760mm
Weight   ...   180kg

BRAND INFO:

The Draper Expert range is our benchmark for quality. Manufactured for the professional or for industrial use and comes with our guarantee.
