Draper EXPERT Engine Timing Kit (Citroen, Peugeot)

FEATURES:

Used on the following Vehicles:

Citroen Dispatch 1999 - 2007

Citroen C3 2002 - 2010

Citroen C4 2006 - 2012

Citroen C5 2000 - 2008

Citroen Xsara 1999 - 2000

Peugeot 107 2005 - 2010

Peugeot 1007 2005 - 2010

Peugeot 206 1999- 2011

Peugeot 207 2006 - 2010

Peugeot 306 1999 - 2002

Peugeot 307 2001 - 2009

Peugeot 308 2007 - 2011

Peugeot 3008 2009 - 2011

Peugeot 406 1999 - 2006

Peugeot 407 2004 - 2011

Peugeot 508 2011 - 2015

Peugeot 5008 2009 - 2010

Peugeot 607 2000 - 2011

Peugeot 807 2002 - 2010

Peugeot Boxer 2001 - 2006

Peugeot Expert III 2004 - 2012

Peugeot Partner 1999 - 2012

Engine Codes:

1.4cc

DV4TD (8HX), DV4TD (8HZ), DV4TD (8HT), 8HW (DV4TD), 8HV (DV4TED4), 8HY (DV4TED4)

1.6cc

DV6TED4 (9HZ ), DV6TED4 (9HZ), DV6TED4 (9HY), DV6ATED4 (9HX), DV6BTED4 (9HW), DV6TED4 (9HW)

2.0cc

DW10TD (RHY), DW10UTD (RHV), DW10UTED4 (RHK), RHZ (DW10ATED/L3), DW10ATED (RHS), RHS (DW10ATED), DW10ATED4 (RHM), DW10ATED4 (RHW), DW10ATED4/L4 (RHT), DW10BTED4 (RHR), RHX (DW10BTED/L3), RHJ (DW10BTED4), RHL (DW10BTED4)

2.2cc

DW12ATED (4HX), DW12ATED (4HZ), DW12TED4/L4 (4HW), DW12UTED (4HY), DW12BTED4 (4HP), DW12BTED4 (4HT), DW12BTED4 (4HR), DW12BTED4 (4HS)

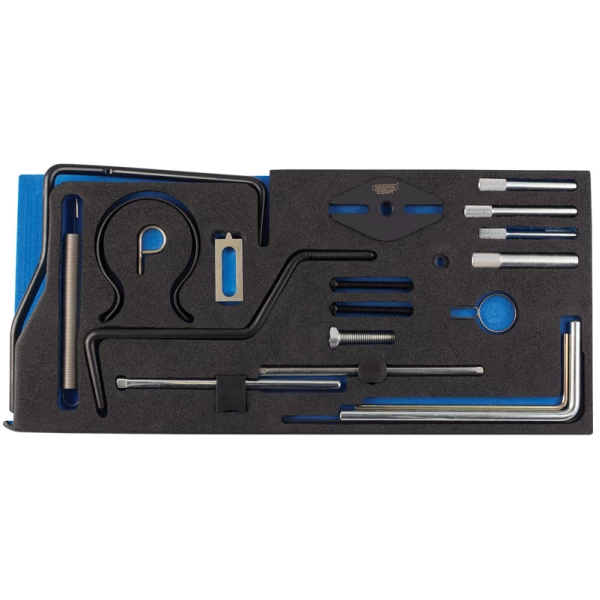

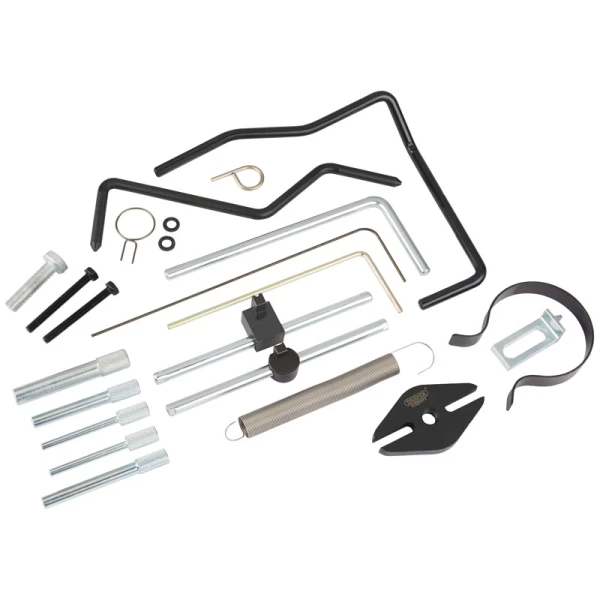

CONTENTS:

• Crankshaft pin - OEM 0188-Y
• Timing belt retaining clip - OEM 0188-K
• Puller beam - OEM 188-P
• M10 x 40 high tensile set screw
• Hex-head bolt
• Washer
• Timing pin - OEM 0188-X
• Centraliser spring - OEM 0188-AH
• Flywheel lock - OEM 0188-F
• Tension adjusting tool - OEM 0188-J2
• Locking pin - OEM 0188-M
• 2mm formed locking pin - OEM 0188-Q2
• 3mm formed locking pin - OEM 0153-AL
• Setting pin - OEM 0188-Q1
• Tension adjusting tool - OEM 0178-E
• Locking pin
• Setting pin
• Flywheel locking pin - OEM 0194-C
• Multi-bend flywheel timing pin - OEM 0.532Y
• Retention spring
