Draper EXPERT 60L 12V DC ATV Spot/ Broadcast Sprayer

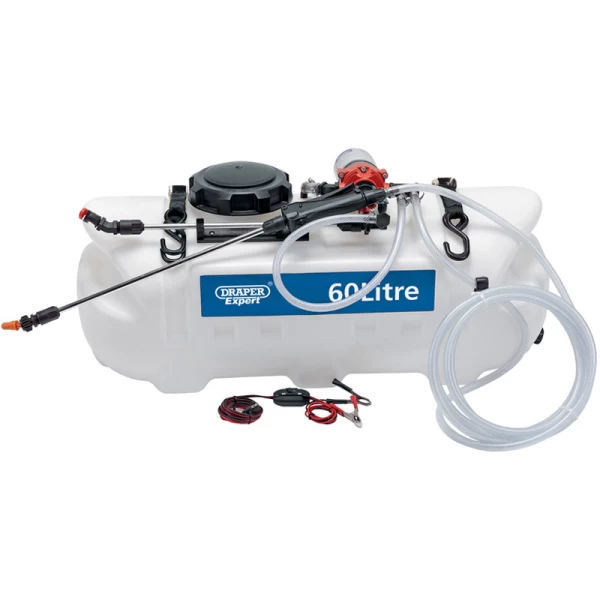

Mounts to any all terrain vehicle (ATV). Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by external 12V battery* or via the ATV 12V electrical supply. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation. *not supplied.

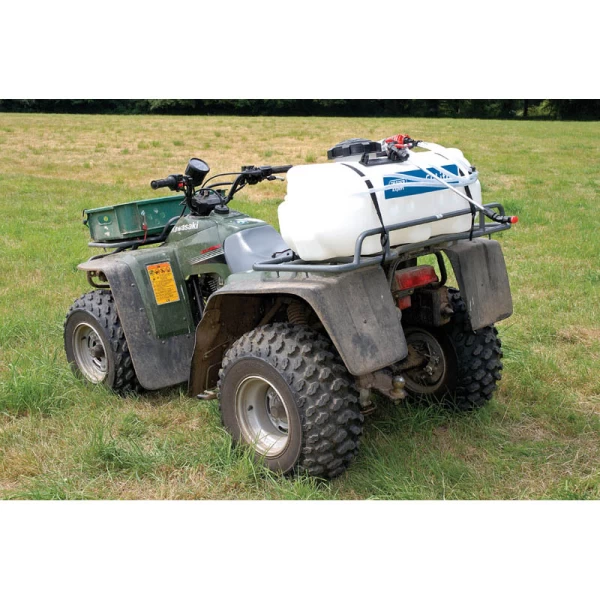

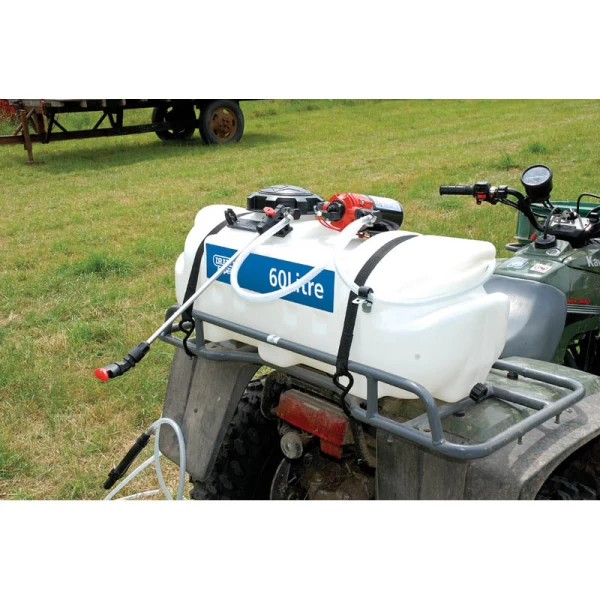

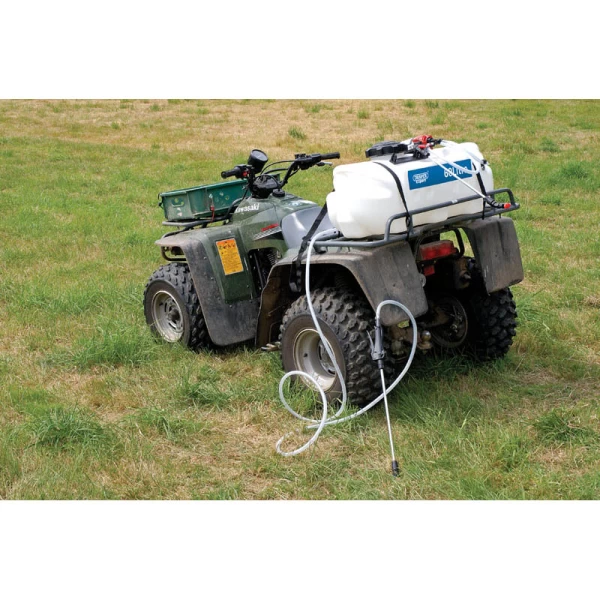

• Mounts to any all terrain vehicle (ATV) by fixing straps supplied
• Supplied with two lances: one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation
• Spray pump powered by external 12V battery* or via the ATV 12V electrical supply. *not supplied.
• Pressure activated diaphragm pump
• Trigger operated lance with heavy droplet pattern for minimal spray drift in windy conditions
• Tank manufactured from special chemical resistant polymers for extra long life
• Can be used for spraying fertilizer, weed killer, de-icer and ethylene glycol products
• Supplied with remote switch for operating away from the ATV
• Tank dimensions: length 864mm; width 368mm; height 419mm

Specifications

• Hose Length (Hand Lance) 4.5M
• Max Flow Rate (B/Cast Lance) 8.3L/min
• Max Flow Rate (Hand Lance) 3.8L/min
• Max Pressure (B/Cast Lance) 70psi (4.86bar)
• Max Pressure (Hand Lance) 40psi (2.76bar)
• Spray Pattern (Both Lances) Stream/Cone
• Tank Dimensions 864 x 368 x 419mm
• Weight 8.3kg (empty)
