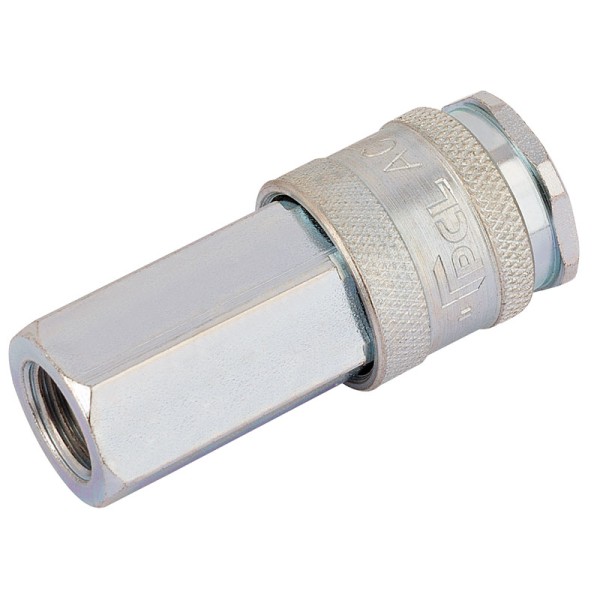

Draper Euro Coupling Female Thread 1/4" BSP Parallel (Sold Loose)

FEATURES:

For heavy duty high flow applications• BSP parallel• Tested to over 1 million cycles• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)• Zinc passivated to significantly improve corrosion resistance• Hard wearing steel construction. Sold loose. SPECIFICATION:

SPECIFICATION:

• Flow capacity at 6 bar inlet
• 0.5bar pressure drop         78cfm (2200L/min)
• Max. working pressure 500psi (35bar)
• Test pressure                 725psi (50bar)
• Max. burst pressure         2030psi (140bar)
• Temp. range                         -40 to 100°C
• Nominal flow diameter 7.4mm
