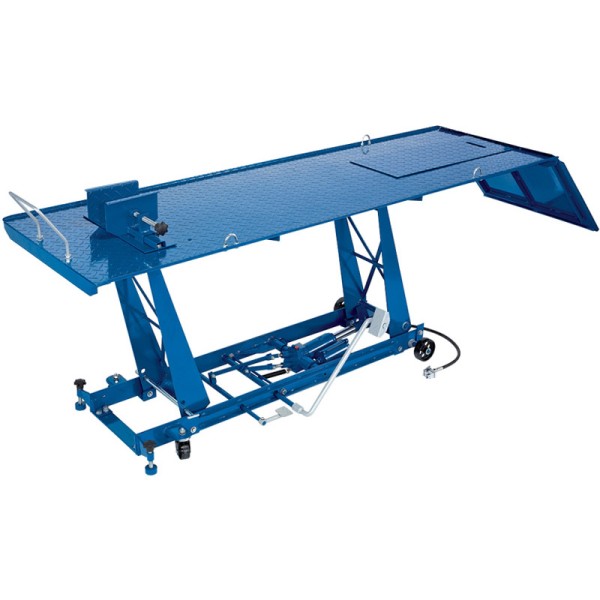

Draper Pneumatic/Hydraulic Motorcycle Lift, 450kg (37188)

All steel construction operates on either heavy duty foot operated hydraulic pump or pneumatic pump system with controller and ram assembly. Safety table lock device to prevent accidental lowering. Adjustable front wheel clamp and wheel stop bar. Removable rear panel to facilitate rear wheel changes. Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use. Table surface is stippled for safety and grip whilst loading motorcycles. Supplied in wooden crate.

• Manufactured to EN1494-2000 Specifications
• Maximum height: 815mm
• All steel construction operates on either heavy duty foot operated hydraulic pump or pneumatic pump system with controller and ram assembly
• Safety table lock device to prevent accidental lowering
• Adjustable front wheel clamp and wheel stop bar
• Removable rear panel to facilitate rear wheel changes
• Base assembly fitted with transport wheels and lock downs to prevent lift from moving whilst in use
• Table surface is stippled for safety and grip whilst loading motorcycles
• Working table size: 2200 x 680mm (L x W)
• Two working heights: 540/730mm
• Manufactured to EN1494 Specification

Specifications

• Air Inlet 1/4"BSP
• Capacity 450kg (1000lbs)
• Closed Height 180mm
• Lifting Range 180-815mm
• Loading Ramp (L x W) 600 x 550mm
• Max Height 815mm
• Operating Air Pressure 90psi (6.2bar)
• Rear Wheel Removal Panel (L x W) 690 x 245mm
• Working Height 1 540mm
• Working Height 2 730mm
• Working Table (L x W) 2200 x 680mm
• Weight 141kg
