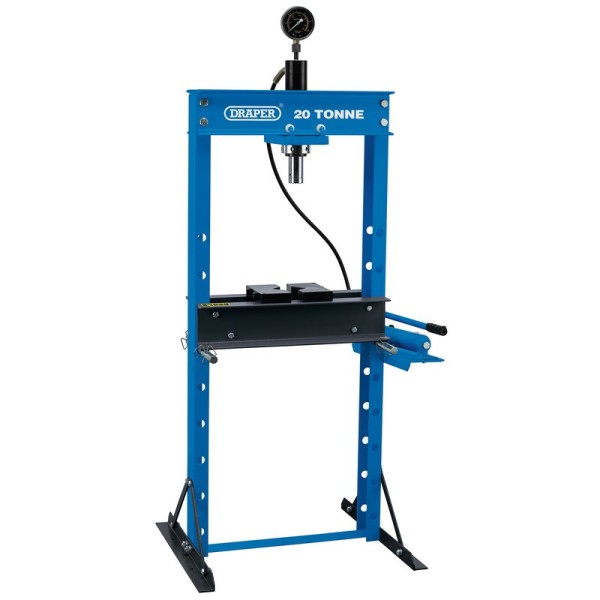

Draper 20 Tonne Floor Press

Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection .Fitted with a safety valve to protect the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.

• Sliding ram
• Ram height to table between 28-998mm
• Glycerine filled gauge for increased accuracy and long service life
• Anti-kink coil fitted to each end of the flexible hose for increased protection

Specifications

• Capacity 20 tonne
• Gauge range 0-28 tonne
• Gauge diameter 105mm
• Ram stroke 185mm
• Ram diameter 40mm
• Ram height to table 28-998mm
• Working table width 550mm
• Overall height 1785mm
• Weight 113.5kg
