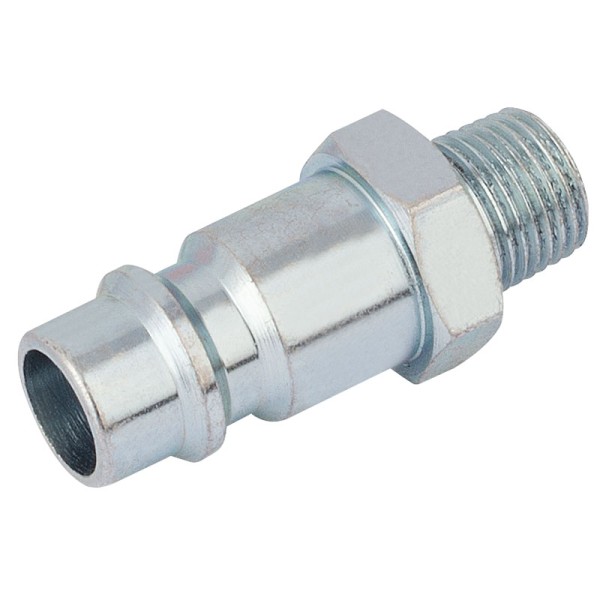

Product Code: 54414
• For heavy duty high flow applications
• Tested to over 1 million cycles
• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)
• Zinc passivated to significantly improve corrosion resistance
• Hard wearing steel construction
Sold loose.
| VAT Rated At: | 20.00% |
| Barcode: | 5010559544141 |
| Weight | 0.015kgs |
| Size | 1/8" |
| Type | M 1/8" BSP |
View product in our catalogue: Page 661
Flow capacity at 6 bar inlet and
0.5bar pressure drop ... 78cfm (2200L/min)
Max. working pressure ... 500psi (35bar)
Test pressure ... 725psi (50bar)
Max. burst pressure ... 2030psi (140bar)
Temp. range ... -40 to 100°C
Nominal flow diameter ... 7.4mm
The Draper range is our standard Draper product, suitable for trades and the enthusiast. Manufactured with quality in mind and comes with our guarantee.
