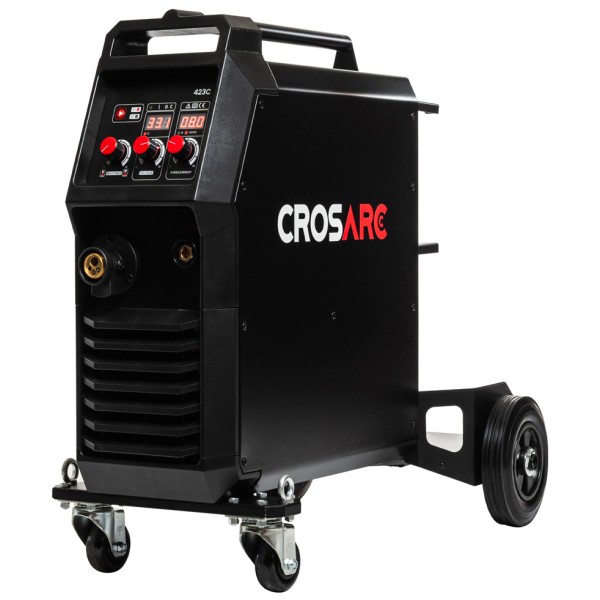

Cros Arc 423C MIG Welder With 4m MIG Torch (400A) (60% Duty Cycle) (3 PHASE)

Features

• Latest IGBT Multi Process Inverter Power Source

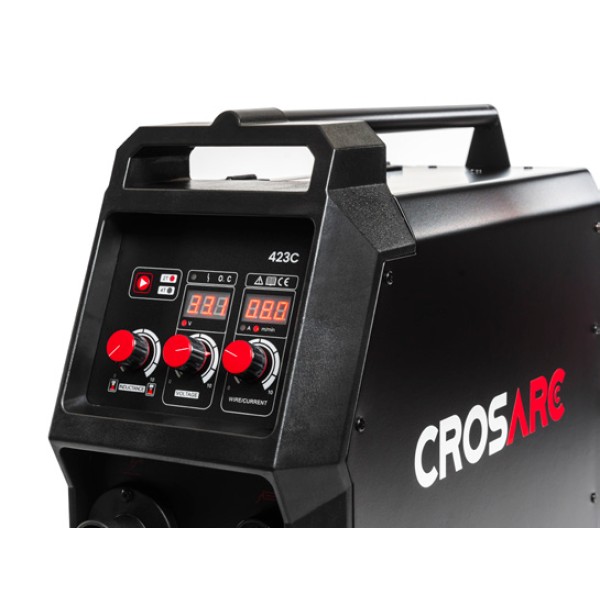

• Digital Volt / Amp Display
• Seamless Electronic Adjustment
• 4 Roll Wire Feed System
• Suitable for 0.6, 0.8, 1.0 & 1.2mm Wire
• Will Accept 5 or 15 Kilogram Reel’s
• Trolley Mounted
• Generator Friendly
• Easy Set Up & Operation

Functions

• MIG/MAG
• Burn Back Adjustment
• Wire Inching
• 2T/4T
• Gas Purge Function
• Variable Inductance

Specifications

• Input Voltage 3P-400 (+ - 15%) 50/60Hz
• Input Current 24 (A)
• Current Range 50-400 (A)
• Voltage Adjustment Range (V) 15-38
• Duty Cycle @ 40°C 400A @ 60%
• Wire Speed (m/min) 2-20
• Efficiency (%) 85
• Power Factor @ 100% 0.93
• Protection / Insulation Class IP21/F
• Dimensions (mm) 935 x 445 x 810
• Weight (Kg) 79
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• 423C Inverter Power Source
• M4-4 Mtr MIG Welding Torch
• Earth Return Lead & Clamp
• Gas Hose
