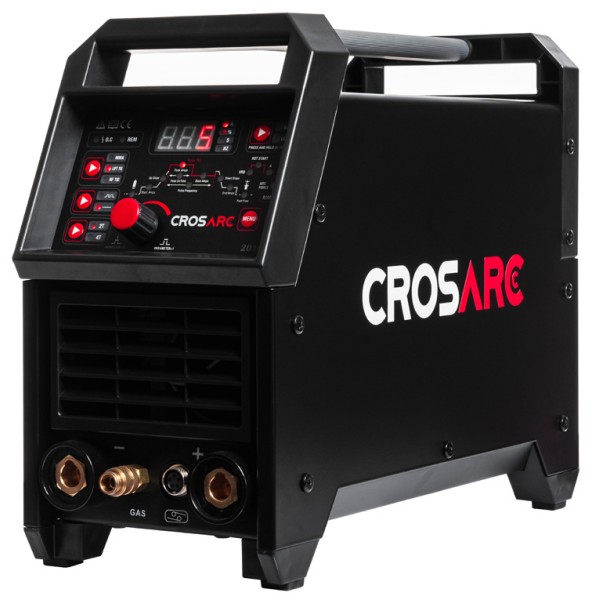

Cros Arc TIG 201 DC Welder With TIG Torch (200A)

Features

• Latest IGBT Multi Process Inverter Power Source
• Digital Volt / Amp Display
• VRD Safety Device
• Portable
• Generator Friendly
• Easy Set Up & Operation

Functions

• MMA
• TIG DC HF/LIFT
• 2T/4T
• Pre/Post Flow Gas Adjustment
• Up/Down Slope Adjustment
• Start & End Current Adjustment
• Pulse Function
• Pulse Frequency Control
• Hot Start
• Arc Force
• Job Save Function

Specifications

• Input Voltage 1P-110/230 (+ - 15%) 50/60Hz
• Input Current 110V 32 (A)
• Input Current 230V 16 (A)
• Current Range TIG 110V 5-120 (A)
• Current Range TIG 230V 5-200 (A)
• Current Range MMA 110V 20-120 (A)
• Current Range MMA 230V 20-180 (A)
• Duty Cycle TIG @ 40°C 200A @ 25%
• Duty Cycle MMA @ 40°C 180A @ 25%
• Efficiency (%) 80
• Power Factor @ 100% 0.73
• Protection / Insulation Class IP21/F
• Cooling Fan
• Dimensions (mm) 590 x 390 x 475
• Weight (Kg) 18
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• TIG 201 DC Inverter Power Source
• Parker DGT26FX-12 TIG Welding Torch
• Earth Return Lead & Clamp
• Gas Hose
• 3 Mtr MMA Lead
• 16A Plug
