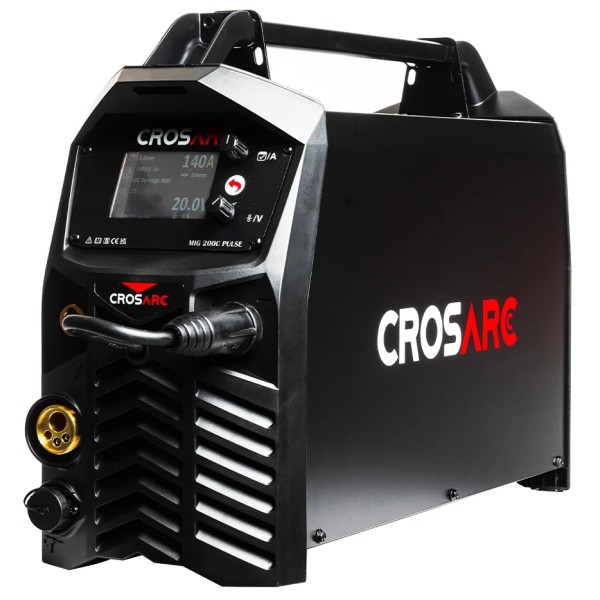

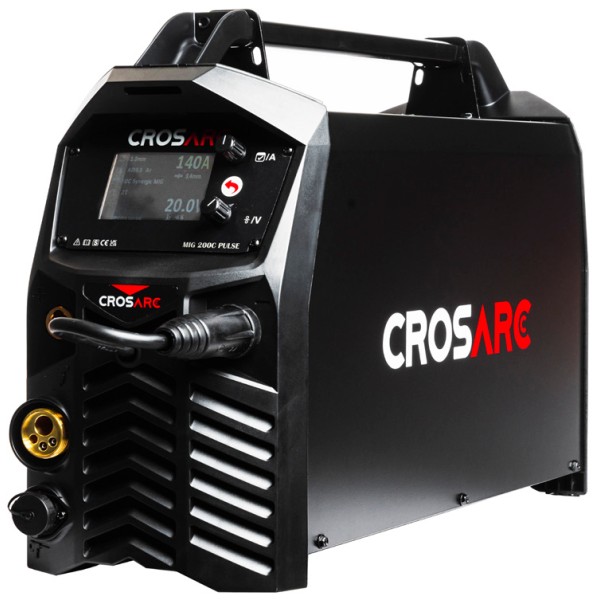

Cros Arc PULSE MIG MULTI PROCESS 200C Welder With 3m MIG Torch (200A)

Features

• Latest IGBT Multi Process Inverter Power Source

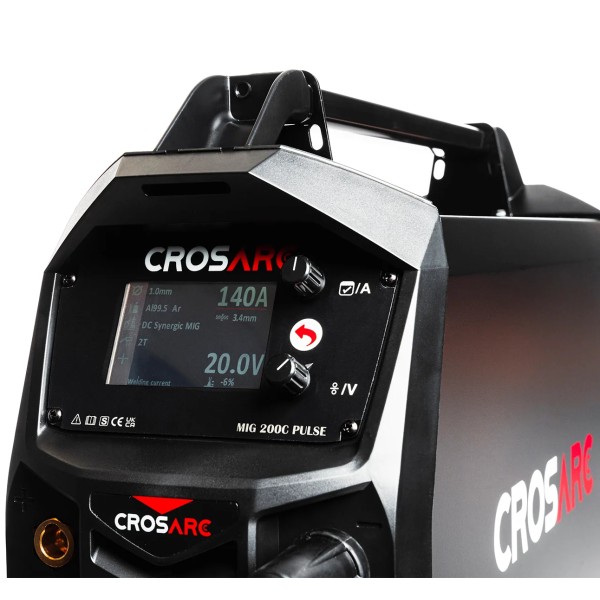

• High Resolution Colour User Interface

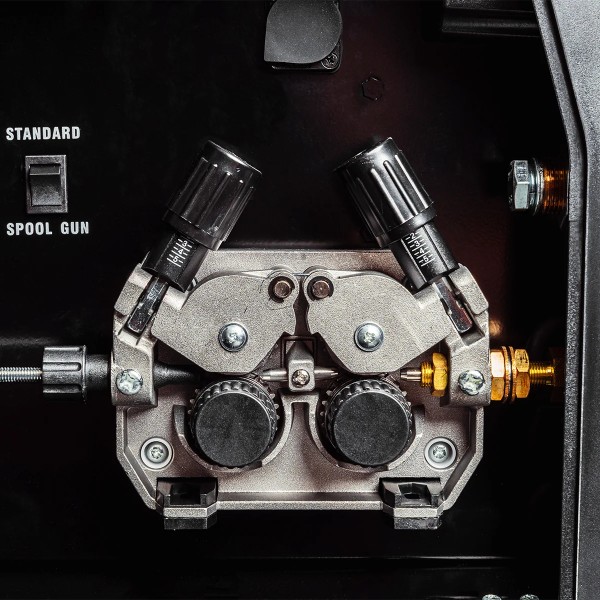

• 2 Roll Wire Feed System
• Suitable for 0.6, 0.8 & 1.0mm Wire
• Fe, AI, Stainless Steel & Flux Cored Wires
• Portable
• Generator Friendly
• Easy Set Up & Operation

Functions

• MIG/MAG
• MMA
• MIG PULSE
• TIG DC LIFT
• Synergic or Manual Mode
• Single/Double Pulse Settings
• Burn Back Adjustment
• Wire Inching
• 2T/4T
• Gas Purge Function
• Variable Inductance
• Job Save Function

Specifications

• Input Voltage 1P-110/230 (+ - 15%) 50/60Hz
• Input Current 110V 32 (A)
• Input Current 230V 16 (A)
• Current Range MIG 110V 20-100 (A)
• Current Range MIG 230V 20-200 (A)
• Current Range TIG 110V 10-85 (A)
• Current Range TIG 230V 10-200 (A)
• Current Range MMA 110V 10-85 (A)
• Current Range MMA 230V 10-170 (A)
• Duty Cycle @ 40°C 200A @ 25%
• Wire Speed (m/min) 1.5-16
• Arc Adustment -9 Soft to +9 Hard (defult 0)
• Efficiency (%) 85
• Power Factor @ 100% 0.99
• Protection / Insulation Class IP23/F
• Cooling Fan
• Dimensions (mm) 550 x 195 x 375
• Weight (Kg) 13
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• 200C Pulse Inverter Power Source
• M2-3 Mtr MIG Welding Torch
• Earth Return Lead & Clamp
• Gas Hose
