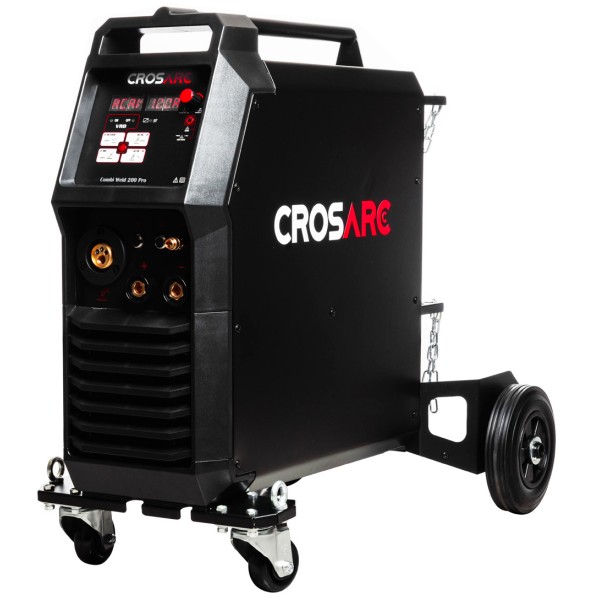

Cros Arc COMBI WELD 200MF PRO Welder With MIG and TIG Torches (200A)

Features

• Latest IGBT Multi Process Inverter Power Source
• Digital Volt / Amp Display
• 4 Roll Wire Feed System
• Suitable for 0.6, 0.8 & 1.0mm Wire
• Will Accept 5 or 15 Kilogram Reel’s
• Suitable for 1.6 - 4mm MMA Electrodes
• VRD Safety Device
• Trolley Mounted
• Generator Friendly
• Easy Set Up & Operation

Functions

• MIG/MAG
• MMA

• TIG AC/DC HF/LIFT
• 2T/4T
• Burn Back Adjustment
• Variable Inductance
• Pre/Post Flow Gas Adjustment
• Up/Down Slope Adjustment
• AC Frequency Control
• AC Balance Control
• Start & End Current Adjustment
• Pulse Function
• Pulse Frequency Control
• Hot Start
• Arc Force
• Job Save Function

Specifications

• Input Voltage 1P-230 (+-15%) 50/60Hz
• Input Current 16 (A)
• Current Range MIG 40-200 (A)
• Current Range TIG 5-200 (A)
• Current Range MMA 20-200 (A)
• Duty Cycle MIG @ 40°C 200A @ 50%
• Duty Cycle TIG @ 40°C 200A @ 50%
• Duty Cycle MMA @ 40°C 200A @ 50%
• Wire Speed (m/min) 2-16
• Efficiency (%) 80
• Power Factor @ 100% 0.73
• Protection / Insulation Class IP21/F
• Cooling Fan
• Dimensions (mm) 935 x 445 x 810
• Weight (Kg) 57
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• Combi Weld 200 Pro Power Source
• M2-4 Mtr MIG Welding Torch

• Parker DGT26FX-12 TIG Welding Torch
• Earth Return Lead & Clamp
• Gas Hose
• 3 Mtr MMA Lead
• Foot Pedal
• 16A Plug
