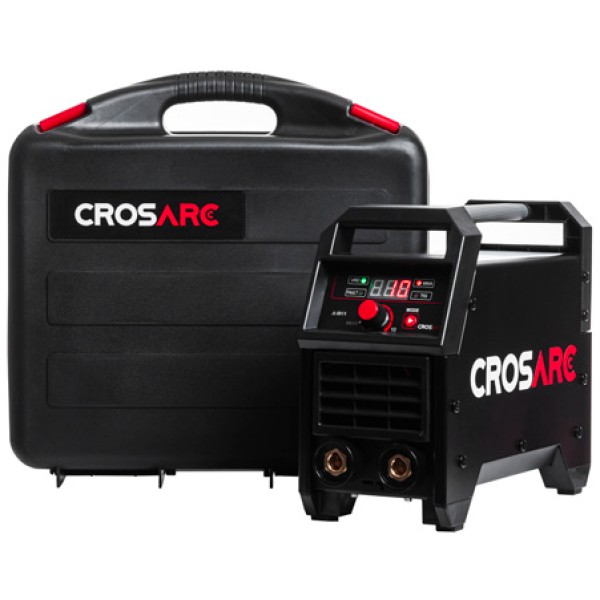

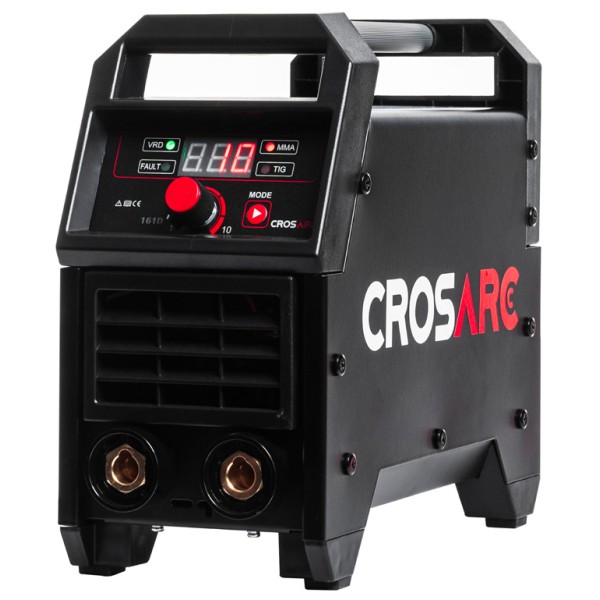

Cros Arc MMA 161D Welder With MMA Leads + Carry Case (160A) (DUAL VOLTAGE)

Features

• Latest IGBT Multi Process Inverter Power Source
• Digital Amp Display
• Suitable for 1.6 - 3.2mm MMA Electrodes
• 35-50mm Cable Sockets
• VRD Safety Device
• Portable
• Carrying Case
• Generator Friendly
• Easy Set Up & Operation

Functions

• MMA
• TIG DC LIFT

Specifications

• Input Voltage 1P-110/230 (+ - 15%) 50/60Hz
• Input Current 110V 32 (A)
• Input Current 230V 16 (A)
• Current Range 110V 15-120 (A)
• Current Range 230V 15-160 (A)
• Duty Cycle 110V @ 40°C 120A @ 25%
• Duty Cycle 230V @ 40°C 160A @ 25%
• Efficiency (%) 80
• Power Factor @ 100% 0.73
• Protection / Insulation Class IP21/F
• Cooling Fan
• Dimensions (mm) 450 x 280 x 320
• Weight (Kg) 8.50
• Conforms to EN IEC 60974-10:2021 EN IEC 60974-1:2022
• Approvals CE UKCA

Package Includes

• 161D Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• 13A Plug
