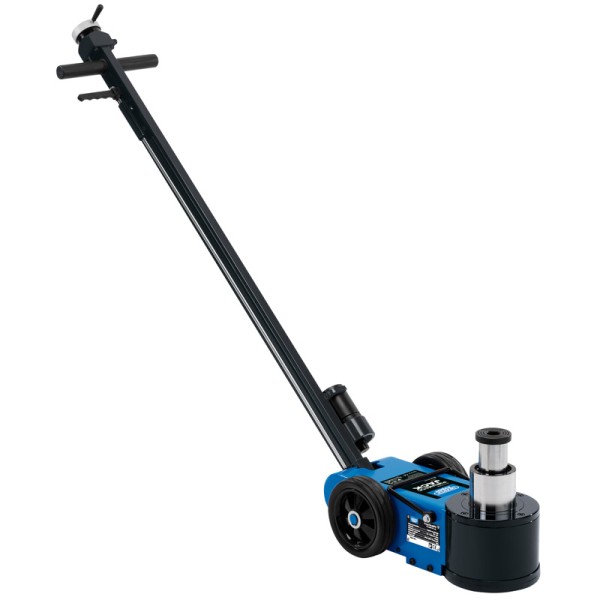

Draper EXPERT Pneumatic Jack (40 Tonne)

FEATURES:

Manufactured to EN1494 Specification

Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a “Slow Down” valve and a “Self-Return” switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.

SPECIFICATION:

• Capacity stage 1             40 Tonne (40,000kg)
• Capacity stage 2                 20 Tonne (20,000kg)
• Minimum height                 150mm
• Maximum height stage 1 343mm (inc extensions)
• Maximum height stage 2 409mm (inc extensions)
• Lift height stage 1         73mm
• Lift height stage 2         66mm
• Operating air pressure      9 – 12BAR (130 – 174psi)
• Air consumption                 11.5cfm
• Air inlet                                 1/4" BSP
• Wheel diameter                 165mm
• Wheel width                         42.5mm
• Saddle diameter                 70mm
• Extensions                         45mm and 75mm
• Handle length                 1300mm
• Chassis size                     480 x 186 x 150mm
• Nett weight                     40kg
