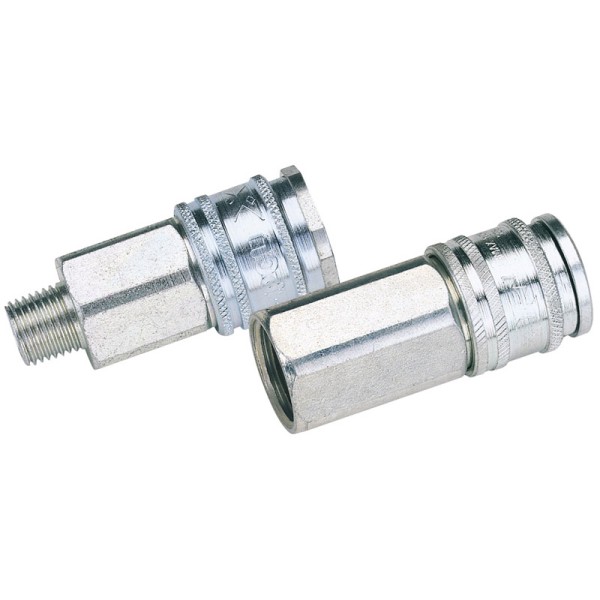

Draper Euro Coupling Male Thread 1/2" BSP Parallel (Sold Loose)

FEATURES:

For heavy duty high flow applications• BSP parallel• Tested to over 1 million cycles• Connects to most popular and European adaptor profiles (Cejn, Rectus etc.)• Zinc passivated to significantly improve corrosion resistance• Hard wearing steel constructionSold loose.

• Size: 1/2"

• Type: Male

SPECIFICATION:

• Flow capacity at 6 bar inlet and

            0.5bar pressure drop:          78cfm (2200L/min)

• Max. working pressure: 500psi (35bar)
• Test pressure:                 725psi (50bar)
• Max. burst pressure:         2030psi (140bar)
• Temp. range:                 -40 to 100°C
• Nominal flow diameter: 7.4mm
